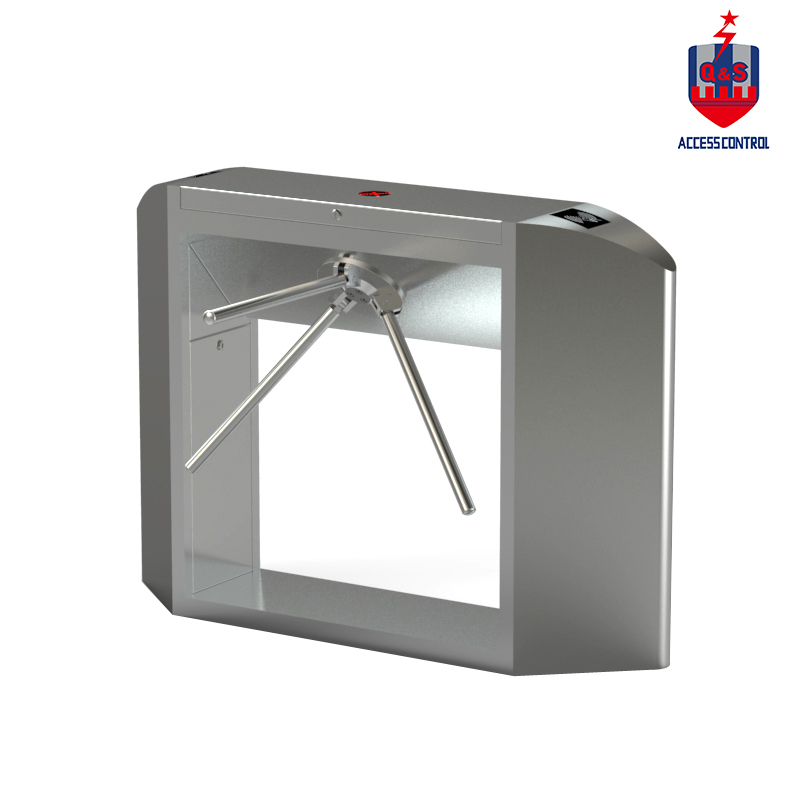

APH-618 Bridge type Tripod Turnstile Gate

Product Details:

· Place of Origin: China

· Brand Name:QS Security Co,Ltd

· Certification: ISO, CE, FCC, RoHS

· Model Number: APH-618



Payment & Shipping Terms:

· Minimum Order Quantity:1 pcs

· Price: 1-590 usd/pcs

· Packaging Details: carton package+wooden box

· Delivery Time: 2-7 days

· Payment Terms: L/C, T/T, Western Union, MoneyGram

· Supply Ability: 8000pcs/month

Availability:
Quantity:
  • APH-618
  • QS SECURITY CO,LTD
  • APH-618

Bridge Type Tripod turnstile

APH-618 Bridge type Tripod Turnstile Gate4APH-618 Bridge type Tripod Turnstile Gate5

Feature and functions

Tripod turnstile is GB 304 stainless steel sheet metal forming, beautiful, durable

Brake lever steering: one way, two-way (optional)

Turnstile gate control mode: manual / automatic (optional)

Tripod turnstile can mount a variety of control devices: metal security gate/IC card/ID card/ card/ barcode card, etc

Ultra quiet design: Mechanical design using third-generation silent, smooth operation no noise impact

Super bright passage indicator. directional design of ultra- bright LED lights to indicate a more eye catching

Automatic access function: the reader automatically run after the brake lever to unlock certain angle, automatically bring people through the gates

Access memory function: After several pedestrians card, access gates opportunity to remember the number, until the entire passage of pedestrians closing;

Power off the pole, the power from the bar features:turnstile gates automatically after power brake lever to facilitate evacuation fall to meet fire safety requirements; (automatic type)

Remote control: RS485 card can be accessed by computer or TCP to RS485 remote control tripod gates

Automatic reset function: by credit card is not specified, within the time turnstile gates back in situ cancel access



Product Specification


Product Name

Tripod Turnstile

Model

APH-618

Dimension

1200*280*980mm

Material

304 Stainless Steel

Case Thickness

1.5-2.0mm

Support System

Face Recognition, IC/ID Card, Fingerprint

Application

Railway, Library, Stadium, Bank

Certification

ISO, CE, FCC, SGS

Gross Weight

90KG

Drive Motor

brushless Motor

Power voltage

AC220±10%,50/60Hz,DC24V

Drive Current

>10mA Communication

Operation condition

-10~50

Relative humidity

None-condensation

Input signal

+12V level signal or DC12V pulse signal with pulse>100ms

Service life

5million

Length of the bar

510mm

Open angle

120º

Pass speed

Less than 30 person/minutes

Structure

304 Stainless steel

Open direction

Single and Doubleoptional

Work environment

Outdoor and indoor

Width of passage

550mm-600mm

Access controller

RFID,FingerprintBiometricIC/ID Cardticket system etc

Communication distance

1200 meters


Tripod turnstile1

Exquisite workmanship



SUS304 stainless steel shell corrosion-resistant, abrasion-resistant

high-temperature resistant

durable and bright



Tripod turnstile2

Aluminum alloy turntable



Aluminum alloy cast into turntable Chrome-plated surface makes the chassis and the turntable more harmonious


Tripod turnstile3

Reinforced base design





The channel base design is not only beautiful and generous, but also stronger


Tripod turnstile4

Indicator light



Super bright traffic indicator

eye-catching instruction





Tripod turnstile5

Cooling holes


Increase heat dissipation

without self-heating protection

long lifetime

Improve barrier work efficiency



swing turnstile .docx

Smart motherboard



Automatically cancel permission when the passer fails

Set the transit time by yourself


Package



Tripod turnstile 7


Feedback of client


tripod turnstile8


FAQ


1. Do you have any warranty?


 Yes, we have.One years warranty and replacement for spare parts.


2. How is your after-sale service?


 We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.


3. What certification do you have?


 All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.


4. Will you teach how to use the machine?


 Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily.  It is easy to operate by anyone with the instructions.


5. How about time of shipment


 Standard machine will be shipped within 3-5 days after the receipt of your payment. While OEM will take longer depends on request.


6.Do you support OEM & ODM on products?


Yes, we accept print clients’ LOGO and support build own brand.

Can also development products against clients’ demand.


7. Can visit your factory?


 Welcome to our factory. We would like to make invitation letter for you. Hope we can cooperate with you for a long term.
