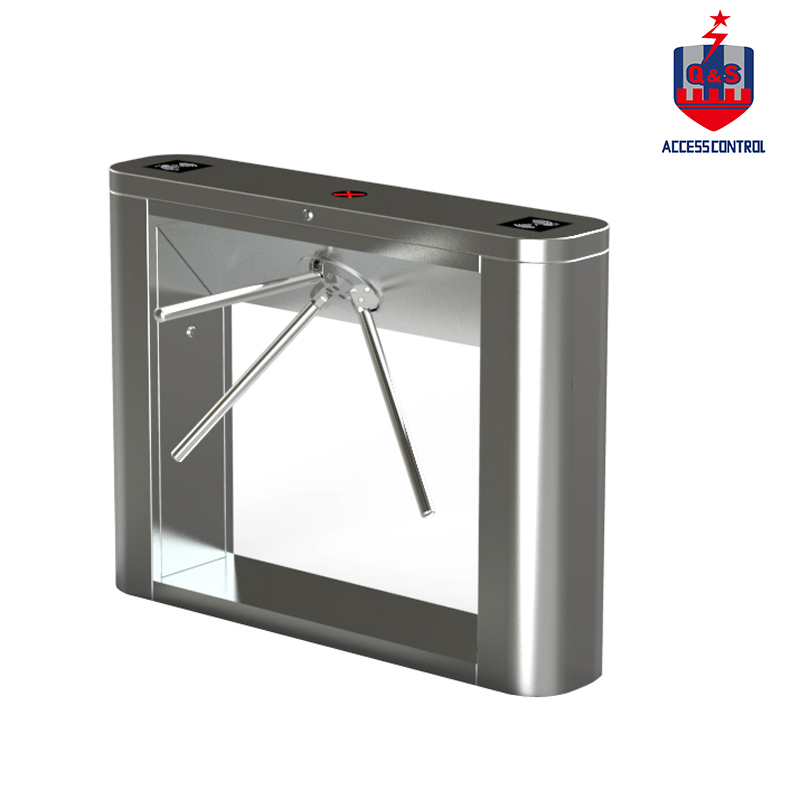

APH-622 Bridge type Tripod Turnstile Gate

Bridge Type Tripod turnstile

Feature and functions

✤ Tripod turnstile is GB 304 stainless steel sheet metal forming, beautiful, durable

✤ Brake lever steering: one way, two-way (optional)

✤ Turnstile gate control mode: manual / automatic (optional)

✤ Tripod turnstile can mount a variety of control devices: metal security gate/IC card/ID card/ card/ barcode card, etc

✤ Ultra quiet design: Mechanical design using third-generation silent, smooth operation no noise impact

✤ Super bright passage indicator. directional design of ultra- bright LED lights to indicate a more eye catching

✤ Automatic access function: the reader automatically run after the brake lever to unlock certain angle, automatically bring people through the gates

✤ Access memory function: After several pedestrians card, access gates opportunity to remember the number, until the entire passage of pedestrians closing;

✤ Power off the pole, the power from the bar features:turnstile gates automatically after power brake lever to facilitate evacuation fall to meet fire safety requirements; (automatic type)

✤ Remote control: RS485 card can be accessed by computer or TCP to RS485 remote control tripod gates

✤ Automatic reset function: by credit card is not specified, within the time turnstile gates back in situ cancel access

Product Specification

Product Name	Tripod Turnstile
Model	APH-622
Dimension	1200*280*980mm
Material	304 Stainless Steel
Case Thickness	1.5-2.0mm
Support System	Face Recognition, IC/ID Card, Fingerprint
Application	Railway, Library, Stadium, Bank
Certification	ISO, CE, FCC, SGS
Gross Weight	90KG
Drive Motor	brushless Motor
Power voltage	AC220±10%,50/60Hz,DC24V
Drive Current	>10mA Communication
Operation condition	-10~50℃
Relative humidity	None-condensation
Input signal	+12V level signal or DC12V pulse signal with pulse>100ms
Service life	≥5million
Length of the bar	510mm
Open angle	120º
Pass speed	Less than 30 person/minutes
Structure	304 Stainless steel
Open direction	Single and Double（optional）
Work environment	Outdoor and indoor
Width of passage	550mm-600mm
Access controller	RFID,Fingerprint，Biometric，IC/ID Card，ticket system etc
Communication distance	≤1200 meters

Package

Feedback of client

FAQ

1. Do you have any warranty?

 Yes, we have.One years warranty and replacement for spare parts.

2. How is your after-sale service?

 We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

3. What certification do you have?

 All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.

4. Will you teach how to use the machine?

 Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily.  It is easy to operate by anyone with the instructions.

5. How about time of shipment?

 Standard machine will be shipped within 3-5 days after the receipt of your payment. While OEM will take longer depends on request.

6.Do you support OEM & ODM on products?

Yes, we accept print clients’ LOGO and support build own brand.

Can also development products against clients’ demand.

7. Can visit your factory?

 Welcome to our factory. We would like to make invitation letter for you. Hope we can cooperate with you for a long term.
