Product Details:
· Place of Origin: China
· Brand Name:QS Security Co,Ltd
· Certification: ISO, CE, FCC, RoHS
· Model Number: APH-720
Payment & Shipping Terms:
· Minimum Order Quantity:1 pcs
· Price: 1-590 usd/pcs
· Packaging Details: carton package+wooden box
· Delivery Time: 2-7 days
· Payment Terms: L/C, T/T, Western Union, MoneyGram
· Supply Ability: 8000pcs/month
Availability: | |
---|---|
Quantity: | |
APH-720
QS SECURITY CO,LTD
APH-720

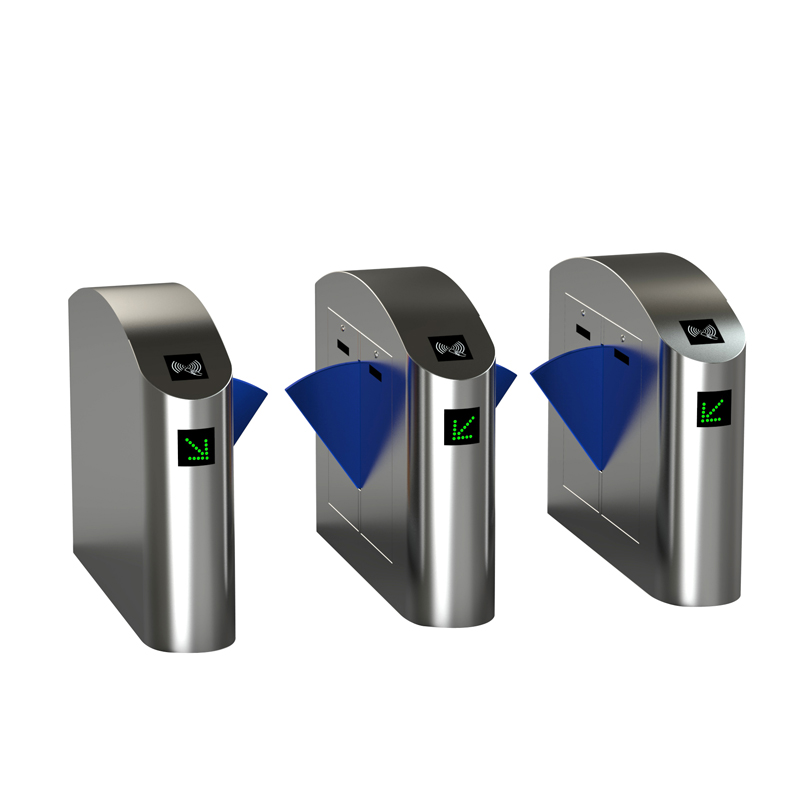

Security Flap Turnstile
Feature and functions
✤ Flap turnstile problem self recovery and corrective measure ability, convenient maintain and adjust
✤ Turnstile motherboard with high clean sound read chips which could broadcast in light of user's requirement
✤ Human base model indication function, real time displaying, improve the passing rate and convenient maintain
✤ Flap turnstile gate automatic counting indicating passenger's number
✤ Flap turnstile resetting automatically, auto cancel the pass through and closed barrier gate in case nothing pass the channel in a setting time
✤ Flap turnstile anti pinch function with UPS to satisfy firefighter requires, ensure user's safe
✤Break-in, tail, over-pass and reverse alert function in order to keep orderliness and effective manage
✤ Standard input / output port, meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC
✤ Super combination capacity, adjustable model on site, adjustable speed of barrier slide, open signal with memory or with out set function
Product Specification
Product Name | Flap Turnstile Barrier Gate |
Material | 304 Stainless Steel, Stainless Steel 304/316, Thickness Is No Less Than 1.5mm |
Mcbf | Rs485,Dry Contact,TCP/IP |
Type | Single Core & Double Core, Fully Automatic Turnstile Gate, Barrier,Access Control |
Model | APH-720 |
Passage Width | 550mm (One Passage), ≤1500mm, 600mm |
Communication Interface | RS485 TCP/IP, RS485/RS232, Relay/RS485 Electrical Standard Or TCP/IP,RS485/IP/TCP |
Net Weight | 65kg, 80kg |
Warranty | 1 Year, 12 Months, |
Application | Airport, School, Apartment, Office, Park |
Power voltage | AC220±10%,50/60Hz,DC24V |
Drive Current | >10mA Communication |
Operation condition | -10~50℃ |
Relative humidity | None-condensation |
Input signal | +12V level signal or DC12V pulse signal with pulse>100ms |
Length of the bar | 510mm |
Service life | ≥5million |
Open angle | 120º |
Pass speed | Less than 30 person/minutes |
Structure | 304 Stainless steel |
Open direction | Single and Double(optional) |
Work environment | Outdoor and indoor |
Width of passage | 550mm-600mm |
Access controller | RFID,Fingerprint,Biometric,IC/ID Card,ticket system etc |
Communication distance | ≤1200 meters |
Exquisite workmanship
SUS304 stainless steel shell corrosion-resistant, abrasion-resistant
high-temperature resistant
durable and bright
Acrylic Wing Arm
Acrylic has good transparency, chemical stability and heat resistance, beautiful appearance
Widely used in the construction
industry
Swipe area
One-way or two-way swipe
Beautiful and generous
Rust-proof and durable
Indicator light
Super bright traffic indicator
eye-catching instruction
Package
Feedback of client
FAQ
1. Do you have any warranty?
Yes, we have.One years warranty and replacement for spare parts.
2. How is your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
3. What certification do you have?
All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.
4. Will you teach how to use the machine?
Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily. It is easy to operate by anyone with the instructions.
5. How about time of shipment?
Standard machine will be shipped within 3-5 days after the receipt of your payment. While OEM will take longer depends on request.
6.Do you support OEM & ODM on products?
Yes, we accept print clients’ LOGO and support build own brand.
Can also development products against clients’ demand.
7. Can visit your factory?
Welcome to our factory. We would like to make invitation letter for you. Hope we can cooperate with you for a long term.
