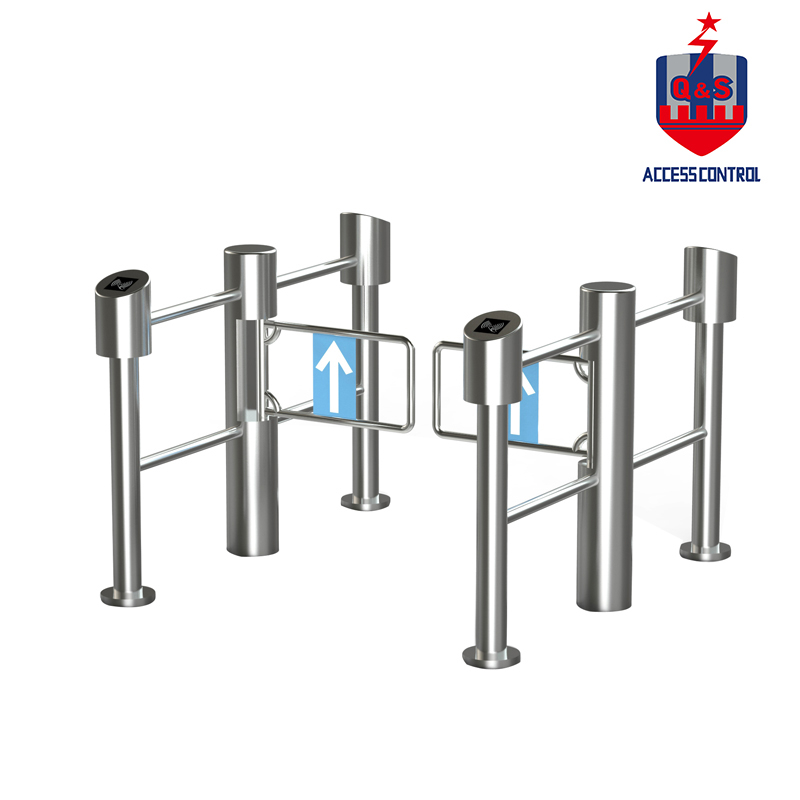

APH-816 Supermarket Swing Turnstile Gate

Supermarket swing turnstile

Feature and functions

✤ Supermarket turnstile problem-self-checking function.

✤turnstile gate has many options of working ways: Bi-direction card reading: One direction card and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.

✤ When power off, arm open automatically and power on again, arm will be held automatically.

✤ When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.

✤ Swing turnstile auto-reposition function: After card read, passenger not pass within regulated time period, supermarket swing turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.

✤ If passenger pass without card read or valid card read, swing turnstile will alarm until passenger get back from the turnstile and then take a valid card to be read for passing.

✤ Swing barrier is with 485 interface for log-distance control concern.

✤ Ant-rush function: If there is no open single, arm will be holding tightly.

✤Double anti-clipping function: Photocell anti-dipping and mechanical anti-dipping. When passenger is going through the supermarket swing turnstile, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically During its reposition, if arm meets any obstacle, arm will get back automatically or stop working for awhile with very slight force. Also it will alarm.

Product Specification

Product Name	Automatic Swing Turnstile Gate
Material	304 Stainless Steel
Lane Width	550-600mm
Humidity	≤95% Coagulation Free
Model	APH-816
Size	Dia168/114*980mm
Opening Time	0.06s
Noise	≤50d
Power voltage	AC220±10%,50/60Hz,DC24V
Drive Current	>10mA Communication
Operation condition	-10~50℃
Relative humidity	None-condensation
Input signal	+12V level signal or DC12V pulse signal with pulse>100ms
Service life	≥5million
Open angle	120º
Pass speed	Less than 30 person/minutes
Structure	304 Stainless steel
Open direction	Single and Double（optional）
Work environment	Outdoor and indoor
Width of passage	550mm-600mm
Access controller	RFID,Fingerprint，Biometric，IC/ID Card，ticket system etc
Communication distance	≤1200 meters

Package

Feedback of client

FAQ

1. Do you have any warranty?

 Yes, we have.One years warranty and replacement for spare parts.

2. How is your after-sale service?

 We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

3. What certification do you have?

 All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.

4. Will you teach how to use the machine?

 Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily.  It is easy to operate by anyone with the instructions.

5. How about time of shipment?

 Standard machine will be shipped within 3-5 days after the receipt of your payment. While OEM will take longer depends on request.

6.Do you support OEM & ODM on products?

Yes, we accept print clients’ LOGO and support build own brand.

Can also development products against clients’ demand.

7. Can visit your factory?

 Welcome to our factory. We would like to make invitation letter for you. Hope we can cooperate with you for a long term.
